Lightning Protection & Earthing Accessories
Split Bolt Connector / Line Tap
Material : High Tensile Brass To BS 2874 CZ 112 & CuZn 40 Pb2 DIN 17660.
Surface : Electro Tinned, Nickel, Copper & Natural Brass.
Also available in Gun Metal (Bronze) & Aluminium.
Size (mm2)
10
16
25
35
50
70
95
120
150
185
240
300
400
500
Top
Eye Bolt
Size
5/8"
3/4"


Manufactured in Gun Metal.
Top
Flexible Copper Braid Bond
Size (mm)
W x H Hole Hole Centres
25 x 3.5 11 200
25 x 3.5 11 300
25 x 3.5 11 400


Other sizes available on request.
Top
"C" Crimp Connectors
Cond. Size (mm2)
16 - 35
25 - 35
50 - 70
70 - 70
95 - 120


Manufactured in electrolytic Copper.
Top
Earth Bonding Points
No. of Holes
1
2
4

Manufactured in Gun Metal.
Top
Earth Boss
Size (mm)
50 x 50 x M10


Manufactured in Mild Steel.
Top
Solid Copper Earth Plate
Size (mm)
600 x 600 x 3
900 x 900 x 3

Manufactured in Copper.
Also available Copper Bonded Earth Plates.
Top
Solid Copper Lattice Mats
Size (mm)
600 x 600 x 3
900 x 900 x 3


Manufactured in Copper.
Top
Bare Copper Tape
Size
Width (mm) x Thk. (mm)
12.5 x 3.0
20.0 x 3.0
25.0 x 3.0
30.0 x 3.0
31.0 x 3.0
38.0 x 3.0
40.0 x 3.0
50.0 x 3.0
High Conductivity Copper Tape to BS1432-C101 / 103, available in 1.5mm, 4mm & 6mm thickness as well.

Also available Bare Aluminium Tapes & PVC covered Tapes.
Top

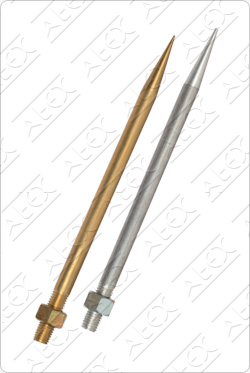

Air Terminal Rod
Size
Thread Length (ft.)
3/8" 1.0
3/8" 1.5
3/8" 2.0
1/2" 1.0
1/2" 1.5
1/2" 2.0
5/8" 1.0
5/8" 1.5
5/8" 2.0


Manufactured in Naval Brass to BS2874 & Aluminium.
Top
Air Terminal Base
Size
3/8"
1/2"
5/8"


Manufactured in Naval Brass to BS2874 & Aluminium.
Top

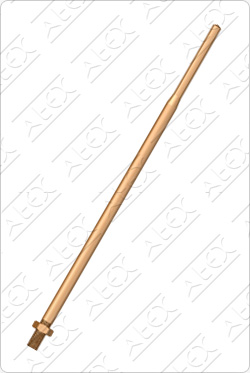

Taper Pointed Air Rod
Size
Rod Length (mm)
16mm 300
16mm 500
16mm 1000
16mm 1500
16mm 2000
3/4" 500
3/4" 1000
3/4" 1500
3/4" 2000


Manufactured in Copper.
Top
Multi-Point
Size
16mm


Manufactured in Copper alloy with Copper Spikes.
Top
Air Terminal Base
Size
16mm
3/4"


Manufactured in Gun Metal.
