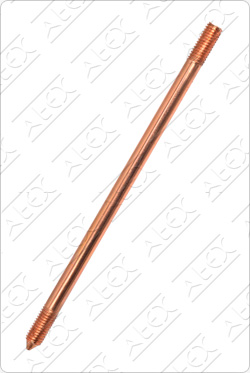

| Copper Bonded Earth Rods |
| Nominal Size |
Thread |
Shank Dia. (mm) |
| 9.5 x 1200 |
Unthreaded |
9.5 |
| 14 x 1200 |
9/16" |
12.7 |
| 14 x 1500 |
9/16" |
12.7 |
| 14 x 1800 |
9/16" |
12.7 |
| 14 x 2400 |
9/16" |
12.7 |
| 16 x 1200 |
5/8" |
14.2 |
| 16 x 1500 |
5/8" |
14.2 |
| 16 x 1800 |
5/8" |
14.2 |
| 16 x 2400 |
5/8" |
14.2 |
| 16 x 3000 |
5/8" |
14.2 |
| 20 x 1200 |
3/4" |
17.2 |
| 20 x 1500 |
3/4" |
17.2 |
| 20 x 1800 |
3/4" |
17.2 |
| 20 x 2400 |
3/4" |
17.2 |
| 20 x 3000 |
3/4" |
17.2 |
|
Manufactured from high tensile, low carbon steel and pure electrolytic copper is uniformly molecularly bonded to thickness upto 0.25mm, thus ensuring excellent corrosion resistance and the high tensile steel ensures strength and hardness allowing the use of power hammer for deep driven systems. |
|
|
|
Top |
|
|
|
|
|
|
 |
|
| Rod Coupler |
|
|
| Manufactured in Naval Brass, Aluminium Bronze and Gun Metal |
|
|
|
Top |
|
|
|
|
|
|
 |
|
| Threadless Coupler (Conical) |
| Size |
| Nominal |
Length |
| 1/2" |
70mm |
| 5/8" |
70mm |
| 3/4" |
80mm |
| Manufactured in Silicon Bronze. |
|
|
|
|
Top |
|
|
|
|
|
|
 |
|
|
|
|
Top |
|
|
|
|
|
|
 |
|

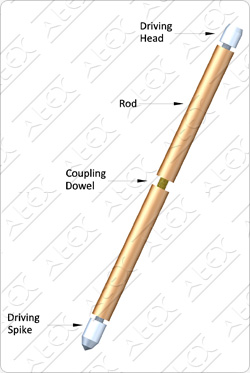

| Solid Copper Earth Rod |
| Rod Dia. |
Length |
| 15mm |
1200mm |
| 20mm |
1200mm |
|
|
| Manufactured from hard drawn Copper to BS2874-C101. These Rods are mainly used where high corrosion resistance and long life is required. Available with driving stud, coupling dowel & spike. |
|
|
|
Top |
|
|
|
|
|
|
 |
|
| Rod to Tape Clamp Type A |
| Size |
| Rod |
Tape Width |
| 1/2" (12mm) |
26mm |
| 5/8" (16mm) |
26mm |
| 3/4" (20mm) |
26mm |
| 1" (25mm) |
26mm |
|
|
| Manufactured in Naval Brass to BS2874 and Gun Metal Also available for 30mm, 40mm, 51mm Tape widths |
|
|
|
Top |
|
|
|
|
|
|
 |
|
| Rod to Cable Clamp |
| Size |
| Rod |
Cond. (mm2) |
| 3/8" (9.5mm) |
6 - 35 |
| 1/2" (12mm) |
16 - 50 |
| 5/8" (16mm) |
16 - 70 |
| 3/4" (20mm) |
35 - 95 |
| 1" (25mm) |
70 - 120 |
|
|
| Manufactured in Naval Brass to BS2874 & Gun Metal. |
|
|
|
Top |
|
|
|
|
|
|
 |
|
| Rod to Cable Clamp Type G |
| Size |
| Rod |
Cond. (mm2) |
| 5/8" (16mm) |
16-70 |
| 3/4" (20mm) |
35-95 |
| 1" (25mm) |
70-120 |
|
|
| Manufactured in Naval Brass to BS2874 & Gun Metal. |
|
|
|
Top |
|
|
|
|
|
|
 |
|
| Rod to Cable Clamp Type O |
| Size |
| 5/8" (16mm) |
| 3/4" (20mm) |
|
|
| Manufactured in Naval Brass to BS2874. |
|
|
|
Top |
|
|
|
|
|
|
 |
|
| Split Clamp |
| Size |
| 9.5mm (3/8") |
| 16mm (5/8") |
| 20mm (3/4") |
|
|
| Manufactured in Naval Brass to BS2874 & Gun Metal. Also available threaded type, for use on rod threads. |
|
|
|
Top |
|
|
|
|
|
|
 |
|
| 'B' Clamp |
|
|
| Manufactured in Naval Brass to BS2874. |
|
|
|
Top |
|
|
|
|
|
|
 |
|
| Rod to Tape Clamp Type E |
| Size |
| Rod |
Tape Width |
| 16mm (5/8") |
25mm |
| 20mm (3/4") |
25mm |
|
|
| Manufactured in Copper with Gun Metal plates. |
|
|
|
Top |
|
|
|
|
|
|
 |
|
| Rod to Cable Clamp Type GUV |
| Size |
| Rod |
Cond. (mm2) |
| 16mm (5/8") |
16-95 |
| 20mm (3/4") |
70-150 |
|
|
| Manufactured in Copper with Gun Metal plates. |
|
|
|
Top |
|
|
|
|
|
|
 |
|
| Tower Earth Clamp |
| Size (mm2) |
| 16 - 70 |
| 70 - 120 |
|
|
| Manufactured in Gun Metal. Also available Single plate type, suitable for 8mm conductor. |
|
|
|
Top |
|
|
|
|
|
|
 |
|
| Re-Bar Clamp |
| Size (mm) |
| Conductor |
Re-bar |
| 8 |
8 - 18 |
| 8 |
18 - 38 |
|
|
| Manufactured in Gun Metal. |
|
